CARLO GAVAZZI TYPE ICB12LF04NO

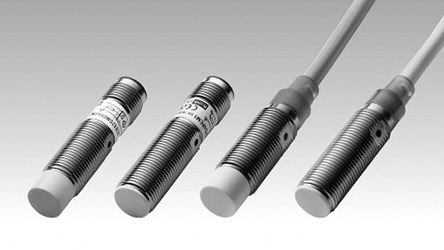

Type ICB, Nickel-Plated Brass Housing

These inductive proximity switches are supplied in a standard nickel-plated brass housings. They are especially suited for applications demanding a high sensitivity range. Output is open collector NPN or PNP transistors.

Features:
Sensing distance: 4 to 8 mm
Flush and non-flush types
Short and long body versions
Rated operational voltage (Ub): 10 - 36 V dc
Output: DC 200 mA, NPN or PNP
LED indication for output ON
Protection: reverse polarity, short circuit, transients
Cable and M12 plug versions
CSA certified for Hazardous Locations
Higher resistance to magnetic field (standard models)

Standards

According to IEC 60947-5-2
